 N5 Putty Mortar Spraying Machine

N5 Putty Mortar Spraying Machine

Date:2018-09-14     Label:

Spraying Machine

Mortar Spraying Machine

Putty Mortar Spraying Machine

1.N5 Putty Mortar Spraying Machine are also called spraying machines, spraying pumps, shotcrete machines, etc. This series of plastering machines are new energy-saving, environmentally friendly constr

Contact Us Product Center
Introduction of

N5 Putty Mortar Spraying Machine

1.N5 Putty Mortar Spraying Machine are also called spraying machines, spraying pumps, shotcrete machines, etc. This series of plastering machines are new energy-saving, environmentally friendly construction machinery, researched and improved based on German advanced technology.

2.Thanks to our perfect design and outstanding techniques, we make out this series of reliable, high adaptable, durable and simple spraying machine sets, which are praised by friends of every walk as well as supported and promoted by regarding leaderships.

3.Nowadays, there are lots of CS board, SB board, polystyrene board, polyphenyl particle board, etc in sound insulation and heat preservation systems on the market. It is easy to handle the mortar surface of these halftones with this machine, and meantime can reach good rigidity and good adhesion, no hollowing and crack. However, if handle that with manual, it will be difficult and meantime makes a low rigidity and binding strength, often result in hollowing, crack, etc.

Main Parameter of

N5 Putty Mortar Spraying Machine

               N5 Putty mortar spraying machine

Model

                   N5 completely automatic

Voltage

                     380V

Power

                     4KW

Delivery capacity

                   6-85L/min

Delivery pressure

                     30bar

Delivery distance

                     60m

Delivery height

                       30m

Max. aggregate diameter

                       3mm

Hopper capacity

                     120L

Feeding mode

                 Completely automatic

Weight of control case

                       70kg

Weight of delivery parts

                       95kg

   Weight of hopper

                       100kg

Overall weight

                       265kg

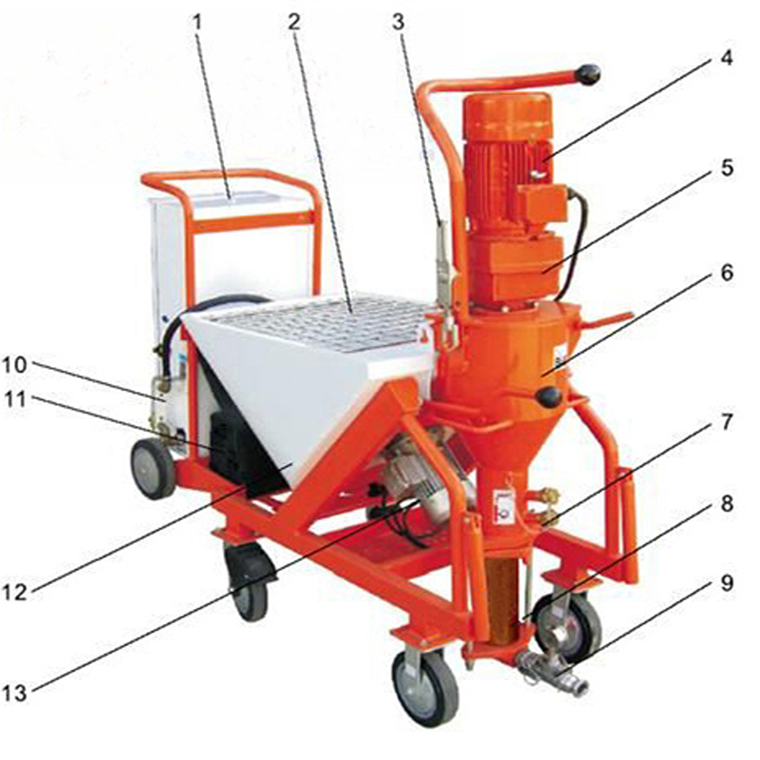

PHOTOS OF

N5 Putty Mortar Spraying Machine

 N5 Putty Mortar Spraying Machine
 N5 Putty Mortar Spraying Machine

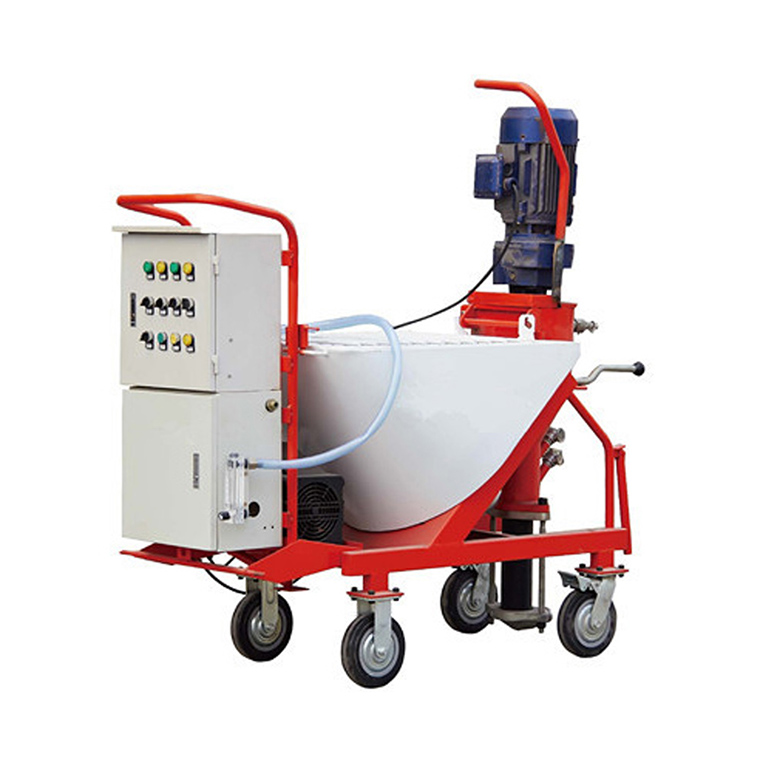

PHOTOS OF

N5 Putty Mortar Spraying Machine
